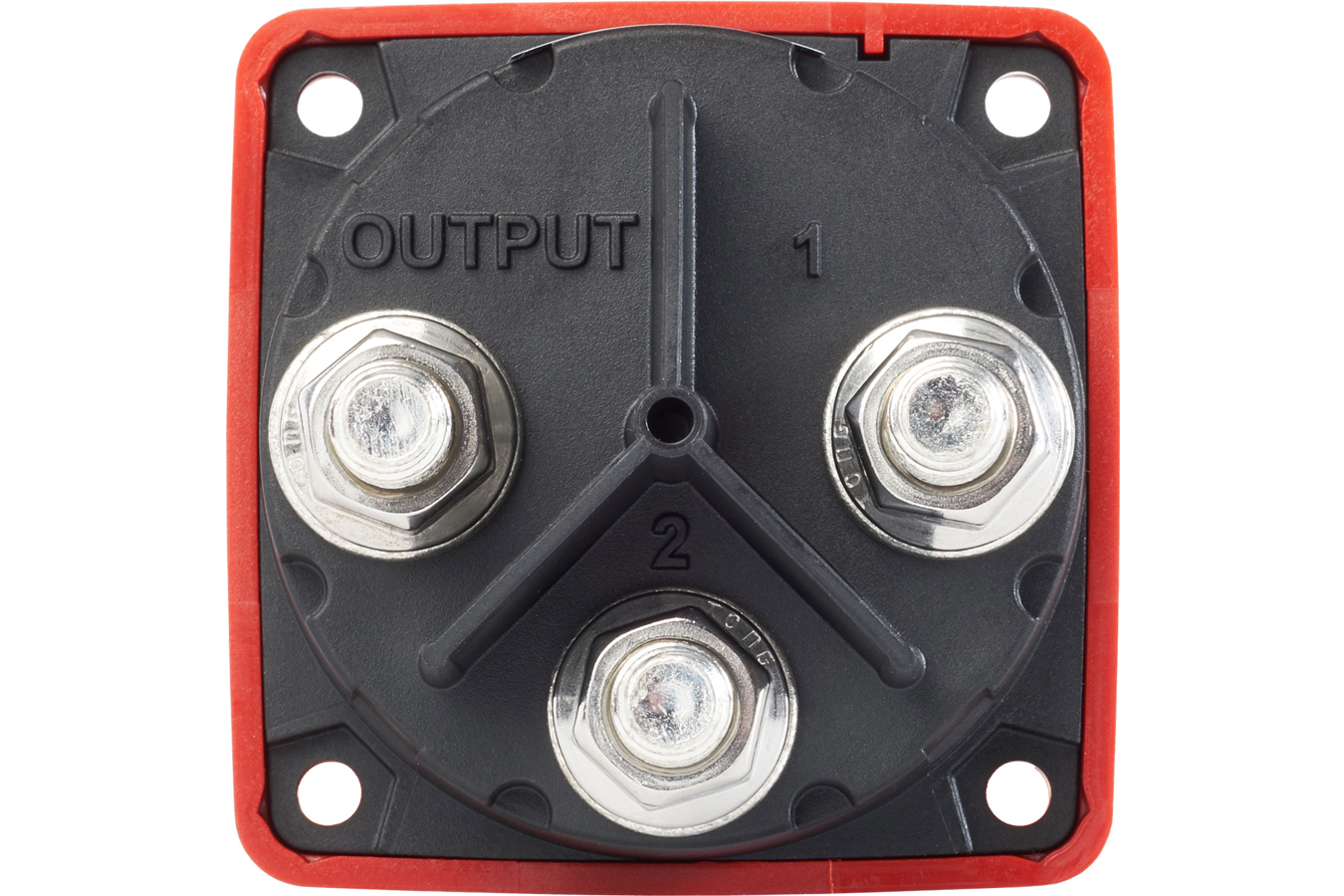

Blue Sea M-Series Mini Selector Battery Switch - Red

Blue Sea M-Series Mini Selector Battery Switch - Red
$56.99
Brand Blue Sea Item 6007
Available at: Buckeye Lake, OH
Brand
Blue Sea
Item Number
6007
UPC
63208506007

Switches isolated battery banks to all loads or combines battery banks to all loads

  • Make before break contact design allows switching between battery banks without power interruption
  • Switch Type: Selector 4 Position
  • Color: Red
  • Switch Positions: 4
  • Battery Combine: Yes
  • Alternator Field Disconnect: No
  • Maximum Voltage: 32V DC
  • Stud Size: 3/8"
  • Terminal Stud Torque: 120 in-lb
  • Continuous Rating: 300A
  • Intermittent Rating: 500A
  • Cranking Rating 30 sec: 900A
  • Battery Inputs: 2
  • Cable Clearance for 4/0 AWG Cables: 1.12 inches
  • Cable Size to Meet Ratings: 4/0 AWG
  • Mounting Holes: Accept #10 screw
  • Stud Material: Tinned Copper
  • Stud Torque: 120 in-lb
  • Terminal Stud Size: 3/8"-16
